How to connect the Motor Shield to the Servos and the Tokymaker?

Where am I?

In TokyLabs you can ask and answer questions and share your experience with others!

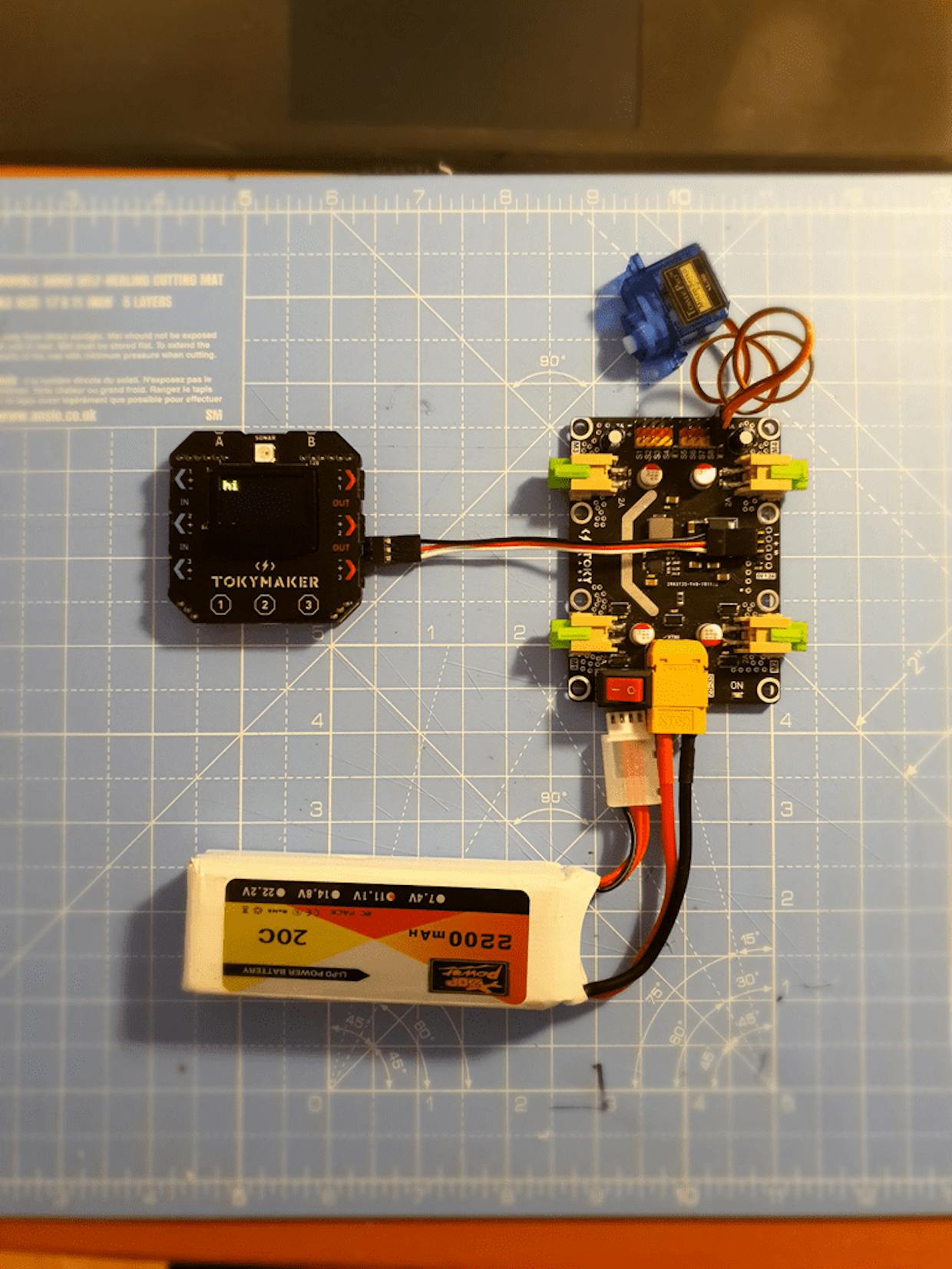

1.- Connect the servos directly to S1-S8 pin header connector of the motor shield.
2.- Connect the XT60 connector of the battery to the motor shield battery connector.

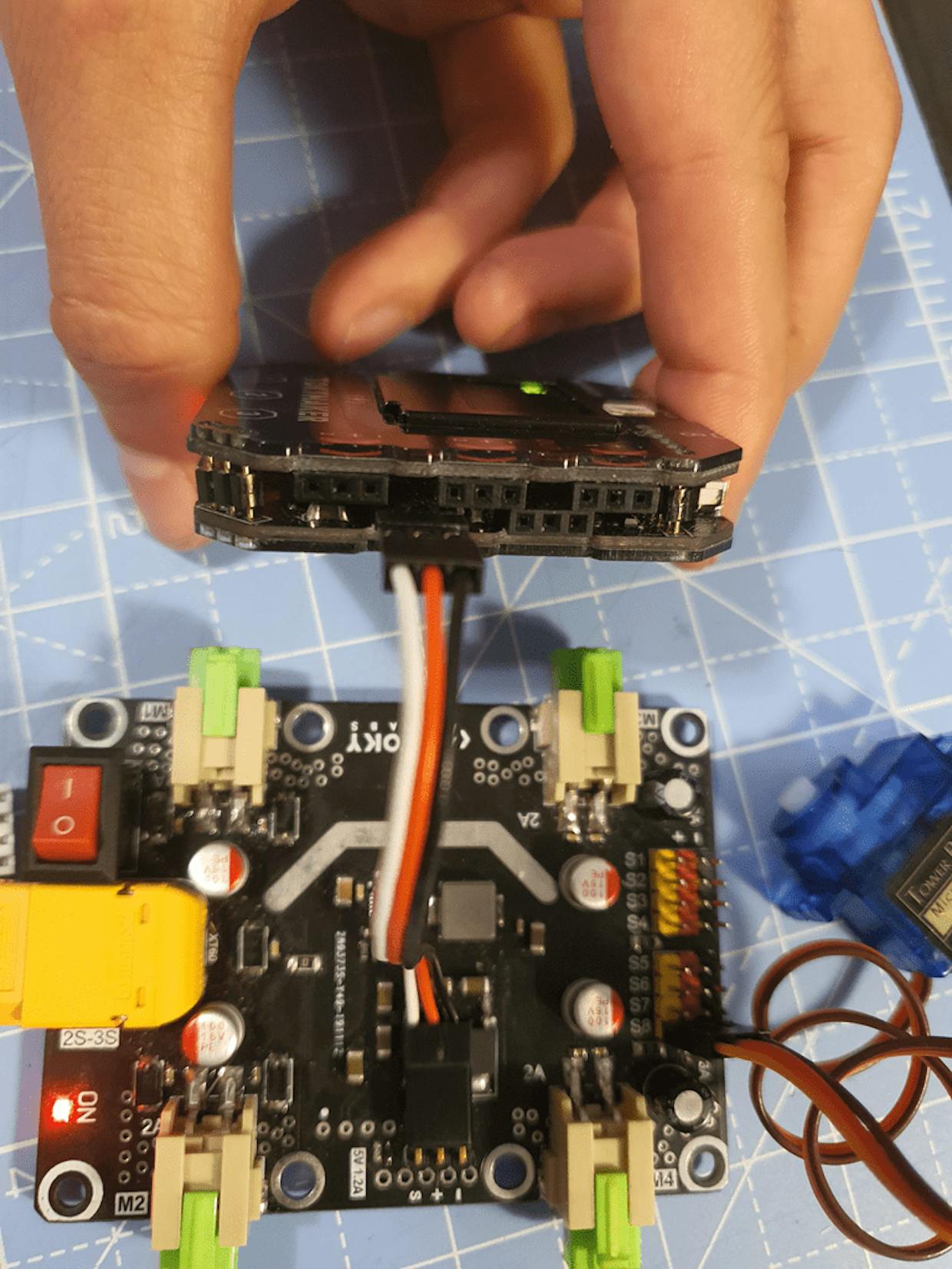

3.- Connect the 3 pint Output cable from the motor Shield to the OUT5 connector of the Tokymaker.

How to connect the Motor Shield to the Servos and the Tokymaker?

2 comments

Liked by Bill Schonfelder

Had a thought instead of using the motor shield, is it possible to use the PCA9685 block instead? Can tokymaker work ... lot smaller than the motor shield.

Hello. I am not having any problem but I want to ask what is the maximum power that the Tokymaker can deliver per Output. I might connect some motors for a robot :)

Can two Tokymakers be connected at the same time?

Can anyone help on how to connect a relay to the tokymaker?

How do I know that my Tokymaker is connected or paired to my computer, tablet or phone?

Hello. I have two questions here. Can I connect Tokymaker with my phone? and can I interact with my Tokymaker from the internet?
